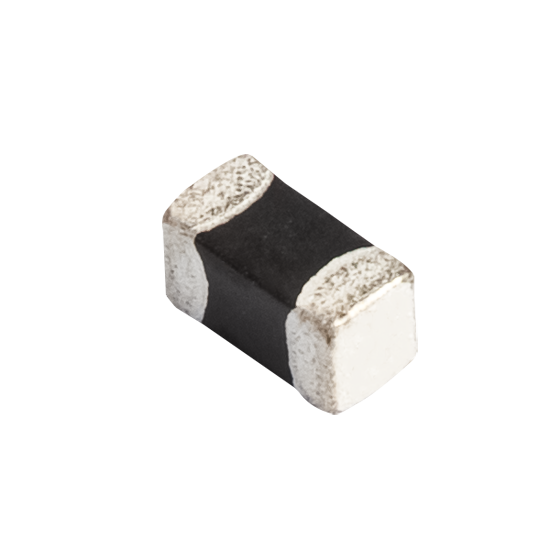

ZPFL-0603H Series Products
| Part number | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L_mm_Max
|
W_mm_Max
|
T_mm_Max
|
Inductance(uH)
|
Tolerance
|
Q(Min)
|
SRF(MHz)
|
DCR(Ω)(Max.)
|
Isat (A)(Typ.)
|
Irms (A)(Typ.)
|
IDC (A)(Max.)
|
IDC (A)(Typ.)
|
Rated Current (A)(Max.)
|
|
ZPFL-0603H-2R2M
|
1.6 | 0.8 | 0.3 | 2.2 | 20% | 40 | |||||||
|
ZPFL-0603H-1R5M
|
1.6 | 0.8 | 0.3 | 1.5 | 20% | 50 | |||||||
|
ZPFL-0603H-1R0M
|
1.6 | 0.8 | 0.3 | 1 | 20% | 60 | |||||||
|
ZPFL-0603H-R47M
|
1.6 | 0.8 | 0.3 | 0.47 | 20% | 105 | |||||||
