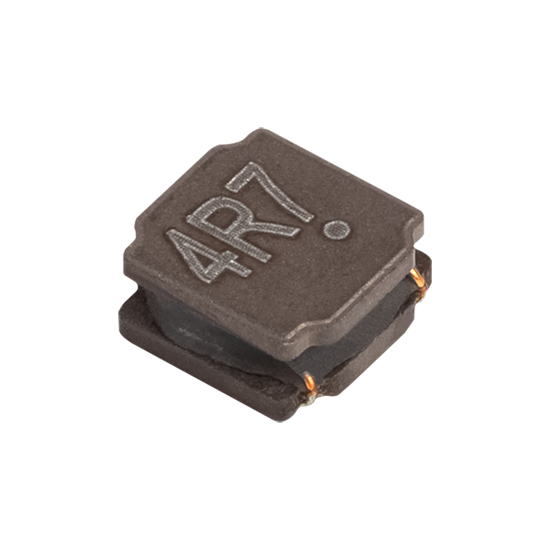

ZADP-4020MES Series Products
| Part number | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm) Max
|
W (mm) Max.
|
T (mm) Max.
|
Inductance(uH)
|
Tolerance(%)
|
DCR(Ω)(Max.)
|
DCR (Ω)(Typ.)
|
Isat (A)(Typ.)
|
Irms (A)(Typ.)
|
Isat (A)(Max.)
|
Irms (A)(Max.)
|
SRF(MHz)
|
|
ZADP-4020MES-100M
|
4 | 4 | 2 | 10 | 20% | 0.216 | 0.18 | 2.8 | 2.35 | 2.8 | 2 | 11 |
|
ZADP-4020MES-6R8M
|
4 | 4 | 2 | 6.8 | 20% | 0.156 | 0.13 | 3 | 2.8 | 3 | 2.4 | 13 |
|
ZADP-4020MES-4R7M
|
4 | 4 | 2 | 4.7 | 20% | 0.108 | 0.09 | 4 | 3.3 | 4 | 2.85 | 17 |
|
ZADP-4020MES-3R3M
|
4 | 4 | 2 | 3.3 | 20% | 0.072 | 0.06 | 4.7 | 4 | 4.7 | 3.45 | 19 |
|
ZADP-4020MES-2R2M
|
4 | 4 | 2 | 2.2 | 20% | 0.048 | 0.04 | 6.1 | 5 | 6.1 | 4.3 | 25 |
|
ZADP-4020MES-1R5M
|
4 | 4 | 2 | 1.5 | 20% | 0.036 | 0.03 | 7.7 | 6 | 7.7 | 5.2 | 30 |
|
ZADP-4020MES-1R0M
|
4 | 4 | 2 | 1 | 20% | 0.026 | 0.022 | 8.7 | 6.7 | 8.7 | 5.8 | 37 |
|
ZADP-4020MES-R68M
|
4 | 4 | 2 | 0.68 | 20% | 0.022 | 0.018 | 8.7 | 7.4 | 8.7 | 6.4 | 57 |
|
ZADP-4020MES-R47M
|
4 | 4 | 2 | 0.47 | 20% | 0.022 | 0.018 | 13.4 | 7.4 | 13.4 | 6.4 | 72 |
