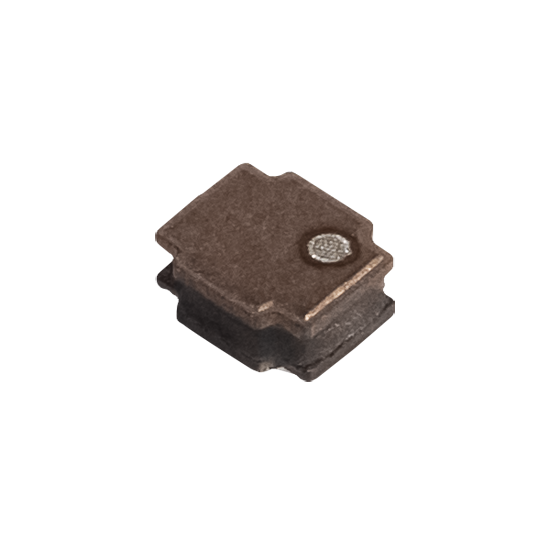

ZADP-252012MES Series Products
| Part number | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm) Max
|
W (mm) Max.
|
T (mm) Max.
|
Inductance(uH)
|
Tolerance(%)
|
DCR(Ω)(Max.)
|
DCR (Ω)(Typ.)
|
Isat (A)(Typ.)
|
Irms (A)(Typ.)
|
Isat (A)(Max.)
|
Irms (A)(Max.)
|
SRF(MHz)
|
|
ZADP-252012MES-100M
|
2.5 | 2 | 1.2 | 10 | 20% | 0.48 | 0.435 | 1.1 | 1 | 1.1 | 0.85 | 14 |
|
ZADP-252012MES-6R8M
|
2.5 | 2 | 1.2 | 6.8 | 20% | 0.366 | 0.305 | 1.15 | 1.1 | 1.15 | 0.95 | 16 |
|
ZADP-252012MES-4R7M
|
2.5 | 2 | 1.2 | 4.7 | 20% | 0.26 | 0.225 | 1.6 | 1.45 | 1.6 | 1.25 | 23 |
|
ZADP-252012MES-3R3M
|
2.5 | 2 | 1.2 | 3.3 | 20% | 0.163 | 0.136 | 1.7 | 2.05 | 1.7 | 1.8 | 25 |
|
ZADP-252012MES-2R2M1
|
2.5 | 2 | 1.2 | 2.2 | 300 | 0.12 | 0.1 | 2.6 | 2.15 | 2.3 | 1.9 | 32 |
|
ZADP-252012MES-2R2M
|
2.5 | 2 | 1.2 | 2.2 | 20% | 0.12 | 0.1 | 2.6 | 2.15 | 2.6 | 1.9 | 32 |
|
ZADP-252012MES-1R5M
|
2.5 | 2 | 1.2 | 1.5 | 20% | 0.072 | 0.06 | 2.9 | 2.8 | 2.9 | 2.4 | 38 |
|
ZADP-252012MES-1R0M
|
2.5 | 2 | 1.2 | 1 | 20% | 0.054 | 0.048 | 3.6 | 3.4 | 3.6 | 3 | 52 |
|
ZADP-252012MES-R68M
|
2.5 | 2 | 1.2 | 0.68 | 20% | 0.043 | 0.036 | 3.7 | 3.6 | 3.7 | 3.15 | 67 |
|
ZADP-252012MES-R47M
|
2.5 | 2 | 1.2 | 0.47 | 20% | 0.035 | 0.029 | 4.9 | 4 | 4.9 | 3.45 | 89 |
|
ZADP-252012MES-R33M
|
2.5 | 2 | 1.2 | 0.33 | 20% | 0.028 | 0.023 | 5.3 | 4.3 | 5.3 | 3.7 | 104 |
|
ZADP-252012MES-R24M
|
2.5 | 2 | 1.2 | 0.24 | 20% | 0.023 | 0.019 | 6.5 | 4.7 | 6.5 | 4.05 | 117 |
