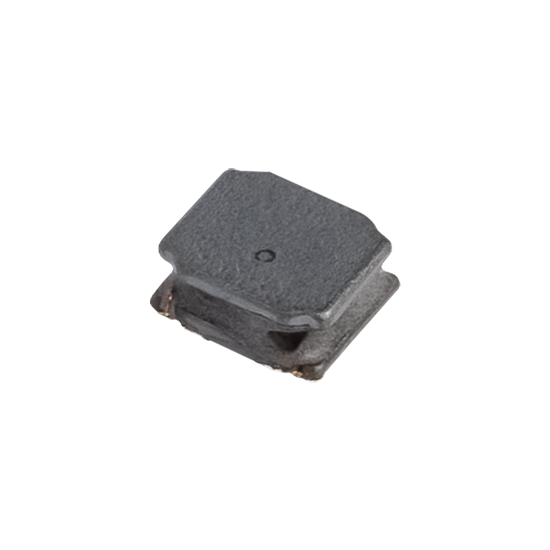

ZADH-3012MES Series Products
| Part number | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm) Max
|
W (mm) Max.
|
T (mm) Max.
|
Inductance(uH)
|
Tolerance(%)
|
DCR(Ω)(Max.)
|
DCR (Ω)(Typ.)
|
Isat (A)(Typ.)
|
Irms (A)(Typ.)
|
Isat (A)(Max.)
|
Irms (A)(Max.)
|
SRF(MHz)
|
|
ZADH-3012MES-220M
|
3 | 3 | 1.2 | 22 | 20% | 0.84 | 0.7 | 0.5 | 0.55 | 0.5 | 0.5 | 14 |
|
ZADH-3012MES-100M
|
3 | 3 | 1.2 | 10 | 20% | 0.372 | 0.31 | 0.75 | 0.8 | 0.75 | 0.75 | 22 |
|
ZADH-3012MES-3R3M
|
3 | 3 | 1.2 | 3.3 | 20% | 0.134 | 0.112 | 1.23 | 1.3 | 1.23 | 1.1 | 62 |
|
ZADH-3012MES-2R2M
|
3 | 3 | 1.2 | 2.2 | 20% | 0.09 | 0.075 | 1.5 | 1.6 | 1.5 | 1.4 | 51 |
|
ZADH-3012MES-1R0M
|
3 | 3 | 1.2 | 1 | 20% | 0.04 | 0.032 | 2.2 | 2.5 | 2.2 | 2.3 | 74 |
