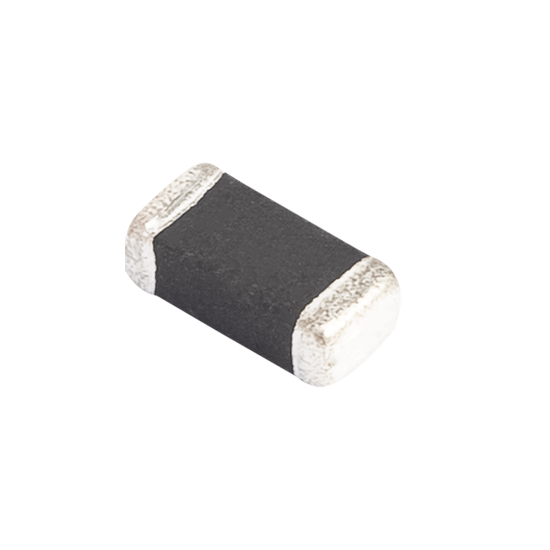

ZFB-0805H Series Products
| Part number | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
T_mm_Max
|
W_mm_Max
|
T_mm_Max
|
Impedance (Ω)
|
Tolerance(%)
|
DCR(mΩ)(Max.)
|
Rated Current (A)(Max.)
|
Insulation Resistance (MΩ)/(Min.)
|
Rated Voltage (Vdc)/(Max.)
|
|
ZFB-0805H-102N
|
0.5 | 1.2 | 0.5 | 1000 | 0.3 | 1 | |||
|
ZFB-0805H-601N
|
0.5 | 1.2 | 0.5 | 600 | 0.15 | 2 | |||
|
ZFB-0805H-471N
|
0.5 | 1.2 | 0.5 | 470 | 0.1 | 2 | |||
|
ZFB-0805H-331N
|
0.5 | 1.2 | 0.5 | 330 | 0.08 | 2.5 | |||
|
ZFB-0805H-301N
|
0.5 | 1.2 | 0.5 | 300 | 0.08 | 3 | |||
|
ZFB-0805H-221N
|
0.5 | 1.2 | 0.5 | 220 | 0.05 | 2.5 | |||
|
ZFB-0805H-201N
|
0.5 | 1.2 | 0.5 | 200 | 0.05 | 3 | |||
|
ZFB-0805H-121N
|
0.5 | 1.2 | 0.5 | 120 | 0.06 | 3 | |||
|
ZFB-0805H-101N
|
0.5 | 1.2 | 0.5 | 100 | 0.06 | 3 | |||
|
ZFB-0805H-800N
|
0.5 | 1.2 | 0.5 | 80 | 0.03 | 3 | |||
|
ZFB-0805H-600N
|
0.5 | 1.2 | 0.5 | 60 | 0.03 | 3 | |||
|
ZFB-0805H-500N
|
0.5 | 1.2 | 0.5 | 50 | 0.025 | 3 | |||
|
ZFB-0805H-470N
|
0.5 | 1.2 | 0.5 | 47 | 0.1 | 1 | |||
|
ZFB-0805H-420N
|
0.5 | 1.2 | 0.5 | 42 | 0.025 | 4 | |||
|
ZFB-0805H-400N
|
0.5 | 1.2 | 0.5 | 40 | 0.05 | 3 | |||
|
ZFB-0805H-310N
|
0.5 | 1.2 | 0.5 | 31 | 0.01 | 6 | |||
|
ZFB-0805H-300N
|
0.5 | 1.2 | 0.5 | 30 | 0.015 | 6 | |||
|
ZFB-0805H-110N
|
0.5 | 1.2 | 0.5 | 11 | 0.01 | 6 | |||
